Description

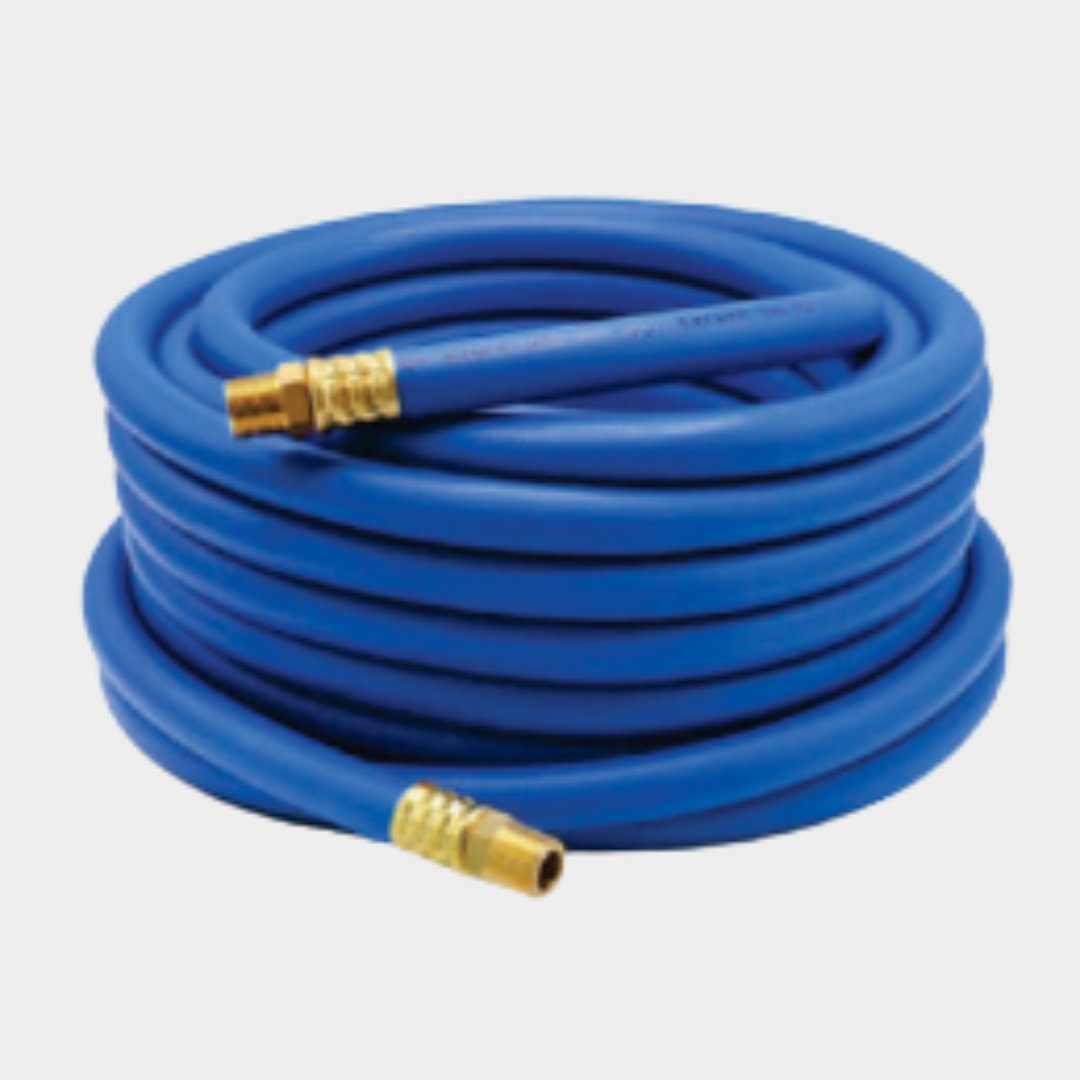

The E-5009 Hybrid Air Hose is engineered to provide the perfect balance of durability, flexibility, and lightweight performance for demanding pneumatic applications. Made from advanced thermoplastic elastomer (TPE), this hose offers excellent resistance to oil, abrasion, and harsh weather conditions. Its non-marking and kink-resistant design ensures smooth operation without damaging surfaces, while its superior flexibility allows reliable performance even in extreme cold temperatures down to -40°F. Designed to handle up to 300 PSI, it is an ideal solution for construction, manufacturing, and industrial air applications.
Construction
-
Tube : Flexible TPE, ARPM Class B (Medium Oil Resistance)
-
Cover : Matte Black Flexible TPE, ARPM Class B (Medium Oil Resistance)
-
Reinforcement : High-strength Polyester Yarn
Application
-
Pneumatic tools
-
Construction and manufacturing industries
-
Industrial air supply systems
-
Workshops and garages
Features
-
Lightweight and highly flexible design
-
Non-marking and abrasion-resistant
-
Oil-resistant (medium oil resistance)
-
Performs well in low temperatures (up to -40°F)
-
Kink-resistant for uninterrupted airflow
-
High-pressure capacity up to 300 PSI

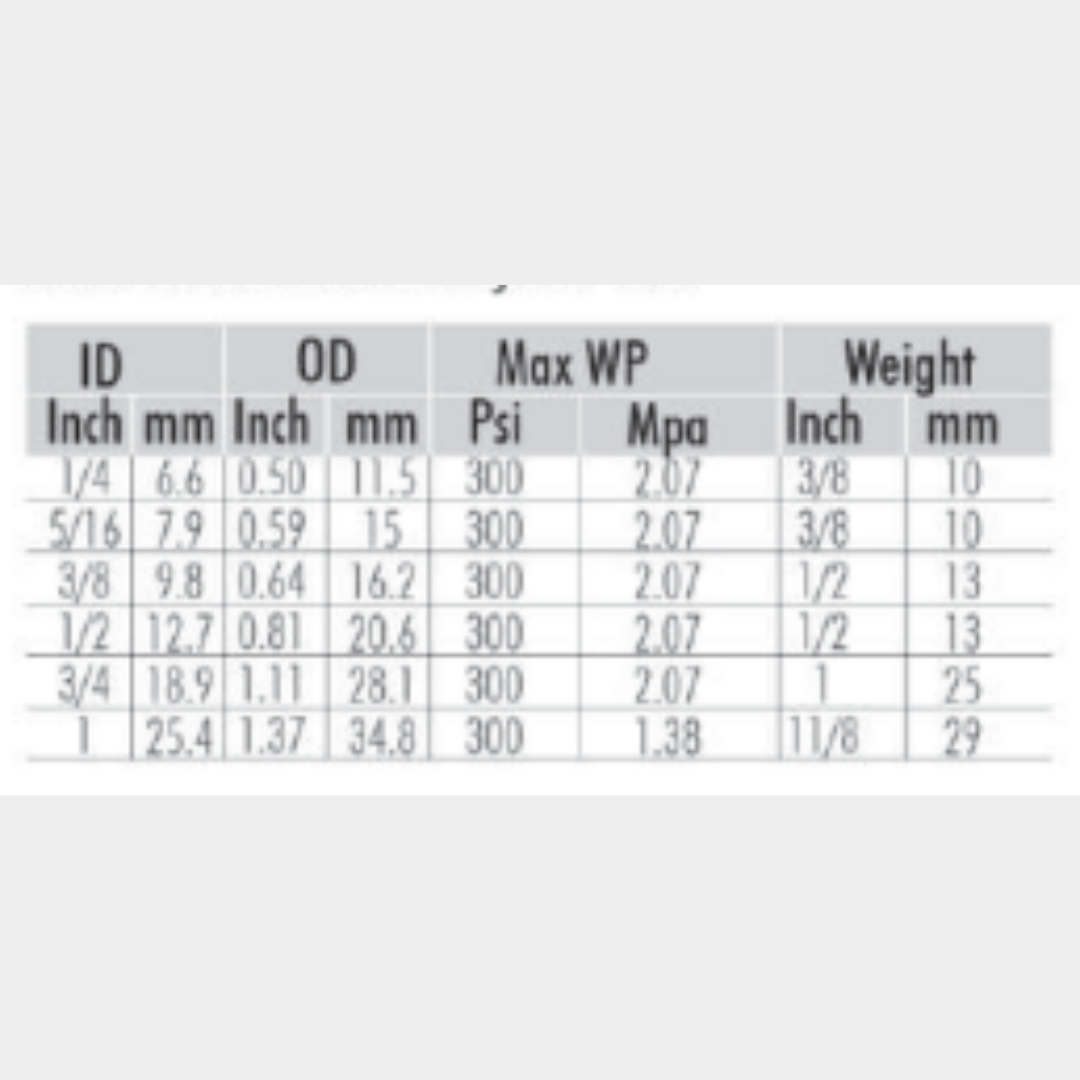

Technical Details
| Inch | ID (mm) | OD (mm) | Max WP (PSI) | Max WP (MPa) | Bend Radius (Inch) | Weight (g/m) |
|---|---|---|---|---|---|---|
| 1/4 | 6.0 | 11.5 | 300 | 2.07 | 3/8 | 10 |
| 5/16 | 7.9 | 14.5 | 300 | 2.07 | 3/8 | 13 |
| 3/8 | 9.8 | 16.2 | 300 | 2.07 | 1/2 | 13 |
| 1/2 | 12.7 | 20.6 | 300 | 2.07 | 1/2 | 13 |
| 3/4 | 18.9 | 28.1 | 300 | 2.07 | 1 | 25 |
| 1 | 25.4 | 34.8 | 200 | 1.38 | 1-1/8 | 29 |
