Description

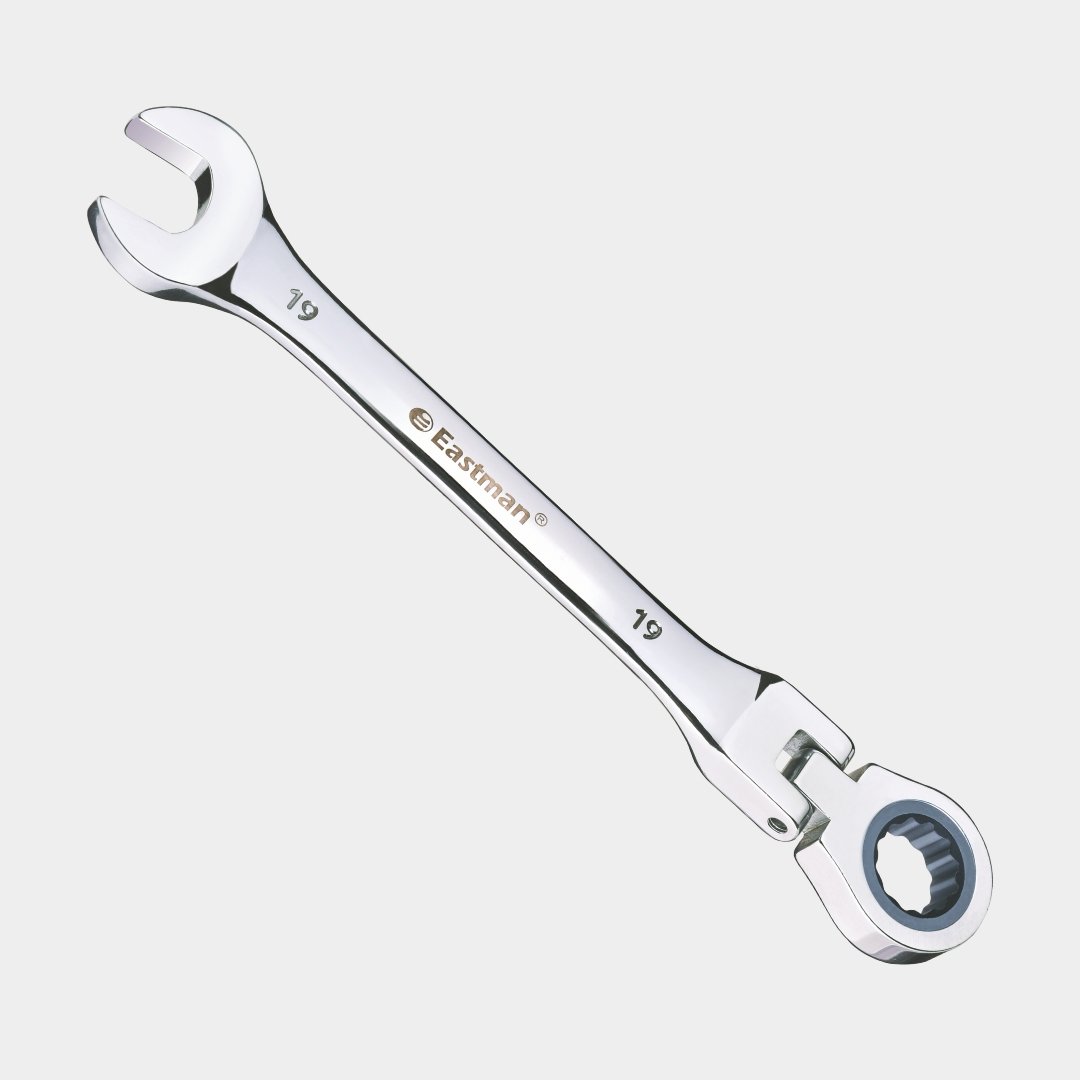

Ratchet Spanner (Flexi) are made to be very helpful and perfect in every use. It is a strong tool with good grip and control that stands up to continuous use. It is a wonderful addition to any toolbox and is great for both professionals and DIY Works.
- CRV Steel
- 72 Teeth Ratcheting Ring
- Full Polished / Matt Finish / Satin Finish
- Bright Chrome Plated
- Hardness 39~48 HRC
- Panel Design: Elliptical PanelSpecification
- 15 Degree offset open side
- Torque as per ASME standard
- 72 Tooth Ratchet (5 degree swing)
- Hardened & Tempered 42-48 HRC
- Life cycle as per ASME
- 180 Degree Rotation
Item Code, Size & Packaging Details
| SIZE mm | SIZE (SAM) | Length mm | Weight / Pc | Inner Box | Outer Box |
| 8mm | 5/16″ | 140 | 0.05 | 60 | 240 |
| 9mm | 148 | 0.062 | 60 | 240 | |
| 10mm | 3/8″ | 155 | 0.075 | 50 | 200 |
| 11mm | 7/16″ | 165 | 0.085 | 50 | 200 |
| 12mm | 172 | 0.095 | 50 | 200 | |
| 13mm | 1/2″ | 180 | 0.115 | 40 | 160 |
| 14mm | 9/16″ | 190 | 0.14 | 30 | 120 |
| 15mm | 205 | 0.165 | 30 | 120 | |
| 16mm | 5/8″ | 215 | 0.185 | 25 | 100 |
| 17mm | 11/16″ | 225 | 0.21 | 25 | 100 |
| 18mm | 242 | 0.235 | 20 | 80 | |
| 19mm | 3/4″ | 253 | 0.26 | 20 | 80 |
| Set No. | Set | Weight. /Set | Inner Box | Outer Box |
| 60M | 6 Pcs. Set (8,10,12,13,14,17mm) | 0.685 | 6 | 36 |
| 80M | 8 Pcs. Set (8-11,13,14,17,19mm) | 0.997 | 6 | 24 |
