Description

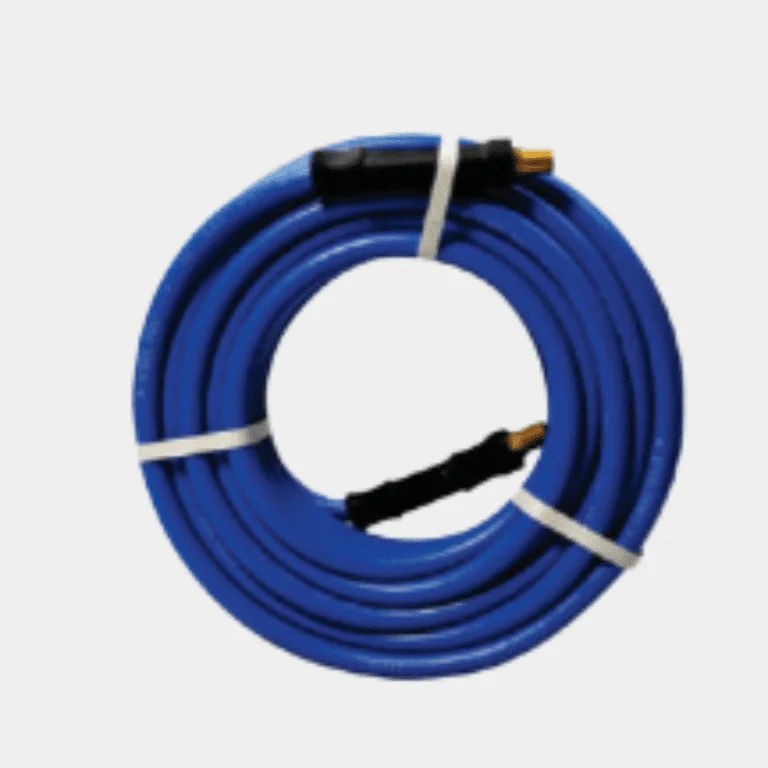

The E-5007 Air Hose is designed for high-performance air transfer in industrial and workshop environments. Manufactured from high-quality PVC and reinforced with high tensile polyester braiding, this hose ensures excellent durability, flexibility, and pressure resistance. Available in black, red, yellow, and blue, it is suitable for a wide range of applications including pneumatic tools, air compressors, rock drilling, automated air lines, and industrial cleaning equipment. Engineered to perform under high pressure, this hose offers strong adhesion between layers, kink resistance, and long-lasting reliability, making it an ideal choice for professional use.
Construction
Tube Material : PVC
Reinforcement : High tensile polyester braiding
Cover : PVC (Available in Black, Red, Yellow, Blue)
Application
Pneumatic tools
Air compressors
Rock drilling
Automated air lines
Industrial cleaning equipment
Construction and workshop use
Characteristics
High tensile polyester reinforced for strength
Suitable for high-pressure applications (up to 300 PSI)
Strong adhesion between PVC and fiber layers
Lightweight, flexible, and kink-resistant
UV & ozone resistant for outdoor durability
Can also be used as a jackhammer hose
Technical Details
| Inch | ID (mm) | OD (mm) | WP (Bar) | BP (Bar) | Length (m/roll) | Weight (g/m) |
|---|---|---|---|---|---|---|
| 1/4 | 6.5 | 12 | 20 | 80 | 100 | 100 |
| 1/4 | 6.5 | 12.5 | 30 | 85 | 100 | 115 |
| 5/16 | 8.5 | 14 | 20 | 80 | 100 | 130 |
| 5/16 | 8.5 | 14.5 | 30 | 80 | 100 | 140 |
| 3/8 | 10 | 16 | 20 | 80 | 100 | 160 |
| 1/2 | 13 | 20 | 20 | 75 | 50 | 240 |
