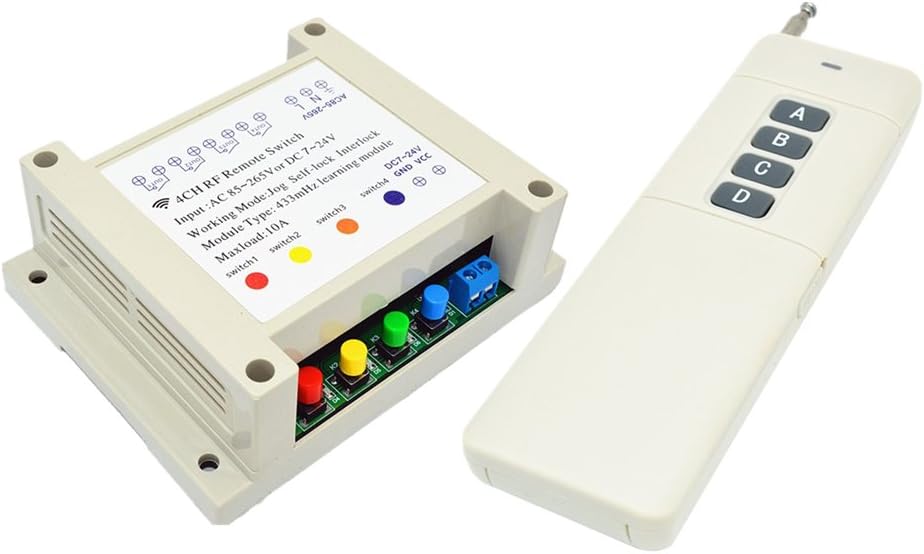

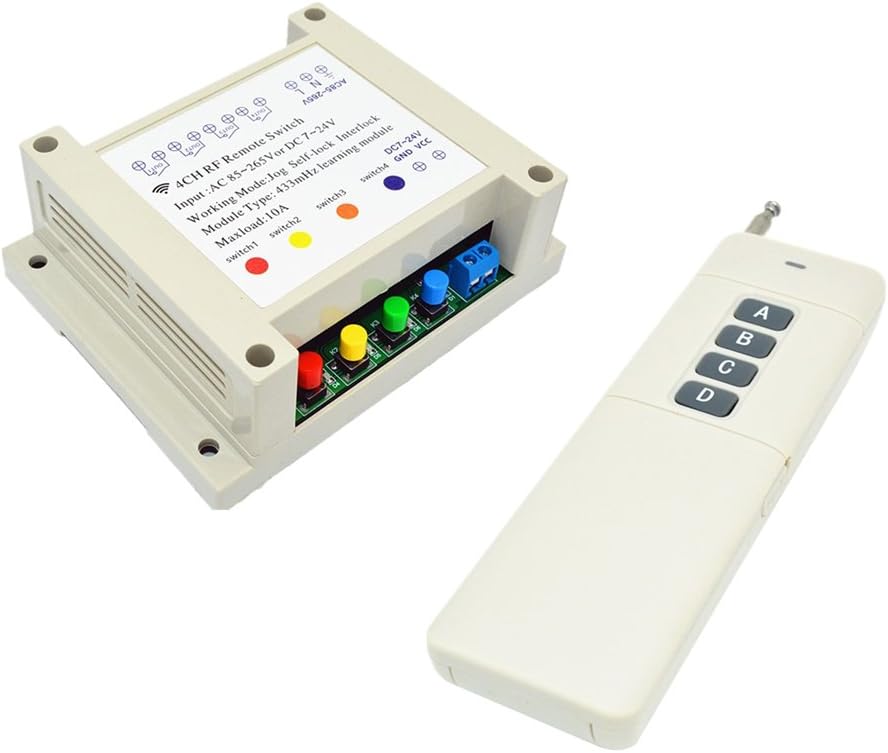

Radio Switch DC 7 28V 4 CH Garage Door Light Remote Control

Description: - Stable and reliable performance, high receive sensitivity. - Easy to install and use. The wireless signal can pass through walls, floors and doors. - Suitable for LED light, water pump, household appliances, mechanical equipment and so on.Learning Method: - A: - After energizing, pressing switch 1 and release quickly, then press - switch 1 again (fast ), learning indicator light flashes 1 times. - Press learning remote controller "A" button, learning indicator light - flashes 2 times. It means you finished the learning. - The second, third and fourth corresponds with switch2, switch3, switch4 button. Just do the same as above.Working Mode: - jog mode: blackout state, pressing learing button and then energizing, the learing indicator light flashes 2 times then release. - self-locking mode: the learing indicator light flashes 3 times then release. - interlock mode: the learing indicator light flashes 4 times then release.Specification: - Material: FR4 glass fiber board - Reveiver Size: approx. 11.5 x 9 x 4cm/4.5 x 3.5 x 1.6inch - Working frequency: 433MHZ - Voltage Supply: AC85~265V or DC7-28V - Channel: 4 (can study independently) - Receiving distance: 100-2000M - Working - mode: self-locking, jog, interlock (Each channel the four channels can - be independently set up to self-lock, interlock, point movement) - Work instruction: D1(Power indicator light), D3-D6(Relay switch indicator light), D2(Learning indicator light)Package Includes:1 Piece Remote Control Transmitter1 Piece Receiver

• * A: After energizing, pressing switch 1 and release quickly, then press switch 1 again (fast ), learning indicator light flashes 1 times. Press learning remote controller "A" button, learning indicator light flashes 2 times. It means you finished the learning.
• * Stable and reliable performance, high receive sensitivity.
• * Suitable for LED light, water pump, household appliances, mechanical equipment and so on.
• * Learning Method:
• * Easy to install and use. The wireless signal can pass through walls, floors and doors.
