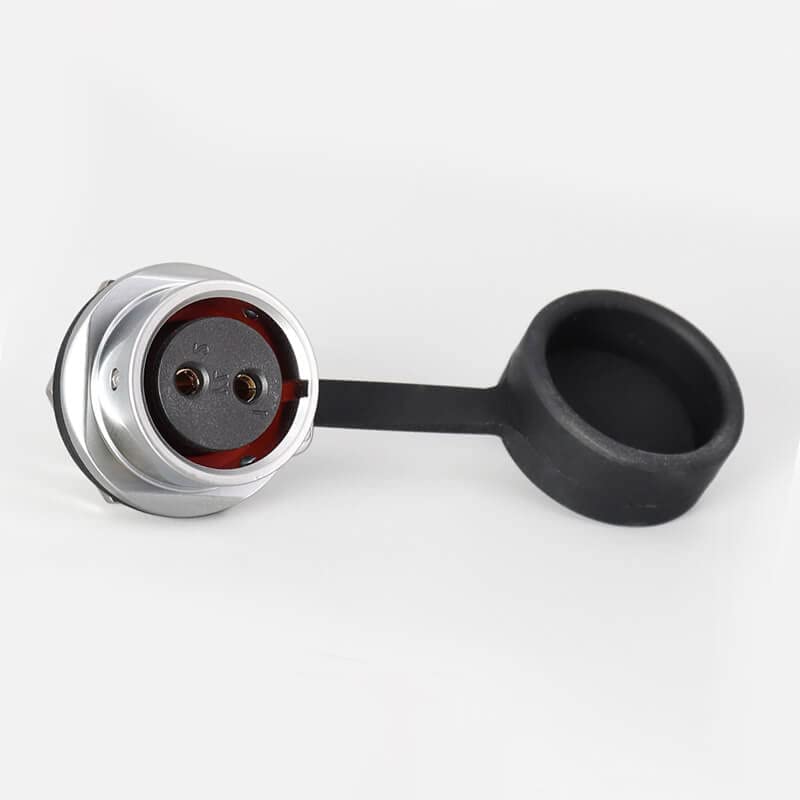

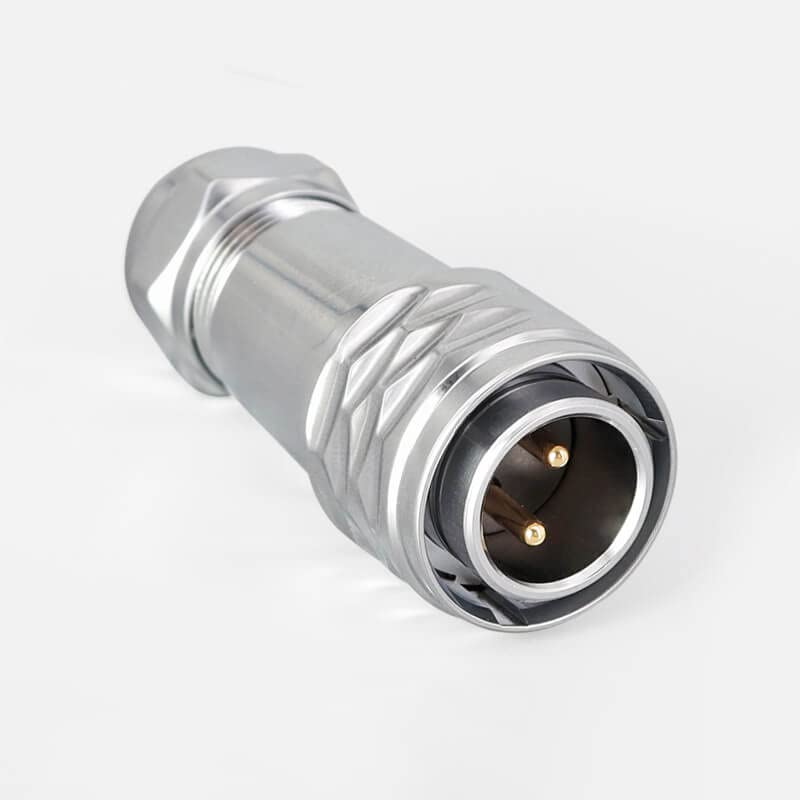

Quick Metal Push-Pull SF20-2 Pin Male Plug Female Socket Back-Mount Camera Cable Waterproof Industrial Circular Aviation
Product details
| Management number | 211328788 | Release Date | 2026/04/04 | List Price | $16.34 | Model Number | 211328788 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
industrial plugProduct Parameter Main Application : Applications: used in aviation navigation computers communications anti-theft devices transportation machinery and electronics etc. Electrical Characteristics Rated current:25A (2 3 4 5pin） Rated current:15A (6pin） Rated current:10A (7pin） Rated current:5A (8 9 10 12pin） Rated voltage:500V Ø1.00mm Center Contact Resistance ≤ 5 mΩ(Milliohms max.) Ø2.5mm Center Contact Resistance ≤ 1 mΩ(Milliohms max.) Ø1.5mm Center Contact Resistance ≤ 2.5 mΩ(Milliohms max) Ø2.0mm Center Contact Resistance ≤ 2.5 mΩ(Milliohms max) Insultation Resistance ≧2000 mΩ (Milliohms min.) Mechanical Characteristics Coupling: Push-pull Quick Mating Durability: ≧500 cycles Environmental Characteristics Environmental Characteristics:-45℃~+85℃ Material: Part Material Finish Body Copper chrome plating Copper chrome plating Center Contact Pin Copper gold plating Copper gold plating Insulator PPS Black Connection method： Push-pull Self lock SF6 options: 2 3 4 5 pin SF12 options:2 3 4 5 6 7 9 Pin SF20 option：2 3 4 5 6 7 9 10 12 pin
- industrial plug
- Sloder Push-pull quick Male plug Female socket Back mount Waterproof 2pin
- Waterproof IP67 Low frequency
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory same quality with much better price.
| Item Weight | 9.9 ounces |
|---|---|
| Manufacturer | XEODUPEAS |
| Item model number | XEODUPEAS |
| Product Dimensions | 0.39 x 0.39 x 0.39 inches |
