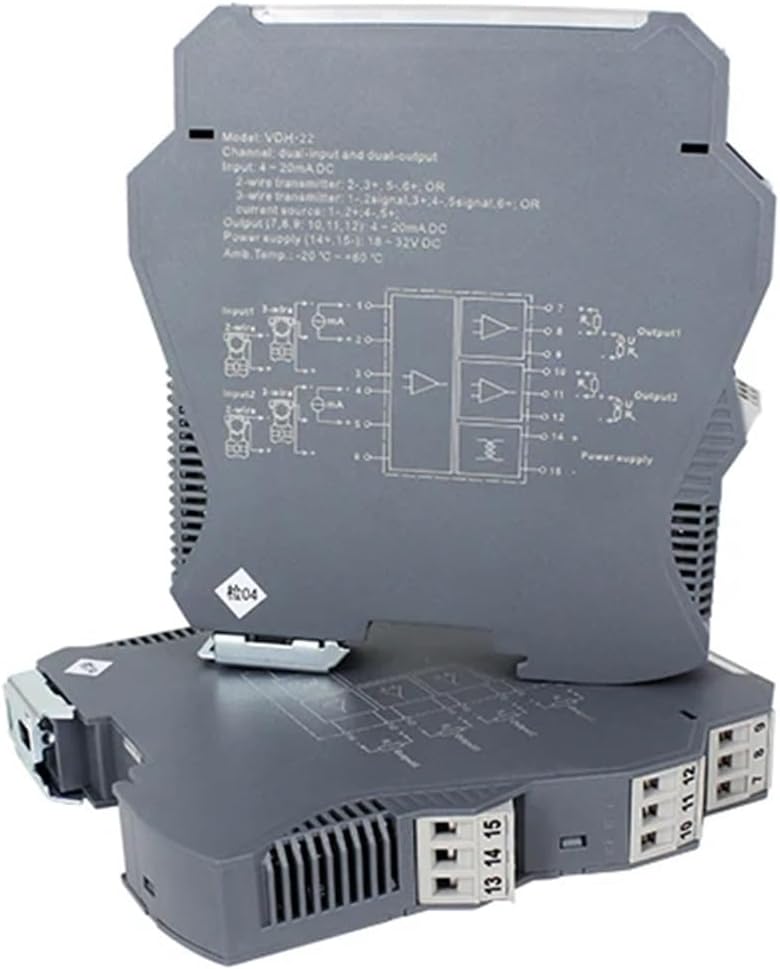

MNEXQML 1PCS Signal Isolator 4-20mA Input Output Analog Distribution Galvanic Isolation Dual Channel(1IN3OUT,Output 0-10V_Input 0-10V_DC24V)

Isolation Transformers4-20mA 0-20mA 0-5V 0-10V 1-5V Converter Signal Isolation To Current Voltage Signal Isolator ConverterNotes: The default power supply is DC24V.Introduction<;1>. intelligent isolated distributor is a high performance distribution isolator. It can be used for isolation, transmission and distribution of output signals of two-wire and three-wire.<;2>. Precisely isolates and distributes 4~20mA,0~10V standard signals and other non-standard signals.<;3>. 3 terminals totally isolated, with good qualities of surge prevention,high accuracy, stronger anti-interference and stronger stability.<;4>. Have the advantage of high precision,high linearity and strong anti-interference.Standard 35mm DIN rail independentTechnical ParametersPower supplyPower Supply 18~32V(Typical 24V )Power Consumption0.6W(1 in 1 out,24V power supply)InputCurrent Signal4mA~20mAInput Impedance60OutputVoltage Signal0V~10VOutput LoadResistance0V~10V:2MOther parametersAccuracy±0.1%F.S.(25±2)Temp Drift40ppm/Respond Time0.5s (0~90%) (TYP)Output Ripple5m.VrmsDistribution Output VoltageOpen circuit voltage:26V;Full load voltage: 23V;Isolation Intensity1500V AC/1min(between input-ouput-power)Insulation Resistance100M(between input-ouput-power)Working Temperature-20~+55EMCComplies withIEC61326-3-1Applicable Equipment2-wires or 3-wires transmitter==========Dimensions : 110*118.9*12.7mmOperating Temperature : -20~+55 CelsiusSupply Voltage : DC24VAccuracy Class : ;0.1%F.S.Display Type : Analog OnlyDIY Supplies : ELECTRICALProduct name : Analog Signal IsolatorChannels : 1 in 1 out,1 in 2 out, 2 in 2 outInput signal : 4-20mA, 1-5V,0-10V etcOutput signal : 4-20mA, 1-5V,0-10V etcInstallation : 35mm
